WIRE MESH/ WIRE CLOTH(FILTER SCREEN)

Mesh - Upto 600 Mesh Per Linear Inch

Wire dia - 1/4" to 50 SWG

Material - stainless Steel,Carbon Steel,G.I., M.S., Brass,Copper,etc.

Also Mfg. - Rectangular Mesh,Hollander Mesh,Dutch Weave, Twill Weave,Five shaft Weave and other type of weaves.

VIBRATING SCREEN/ PANEL (WITH EDGE PREPARATION)

Aperture - 1 mm to 100 mm (1/32" to 4")

Material - High Carbon High Tensile or Spring Steel,Stainless-steel, M.S Wire and G.I. Wire, etc.,

DOUBLE CRIMPED WOVEN WIRE MESH

Mesh - 1/8" to 4"Mesh

Wire dia - 18 G to 3/4" dia(1mm to 20 mm)

Material - G.I., M.S., Stainless Steel, P.V.C. Coated and Aluminium,Sprining Steel,etc.,

PERFORATED SHEET,LINER,STRAINER & PUNCHED SCREEN

Mesh/aperture Holes

Material - 0.4 mm to 1"dia holes - Round,Oblong,Rectangular,Squares,Herring Bone,Imaginative Holes - Stainless-Steel,Mild steel/CRC,Copper,Brass,Aluminium etc.,

Thickness - 3/8, thick to Swg (10 mm to 0.10 mm) Any Hole- Any pitch,Any Thick Any Metal,cut to sizes

MIST ELIMINATOR / DEMISTER PAD / COLUMN PACKING KNITTED WIRE MESH OR AIR- FILTER MESH

These are latest and excellent means of separating mist from vapour gas used mainly in fertilizer chemical and petro chemical industries.

Wire Dia - 28 SWG to 38 SWG

Material - Stainless-Steel,Polypropelene,G.I., COpper, Nylon,Aluminium & other metals.

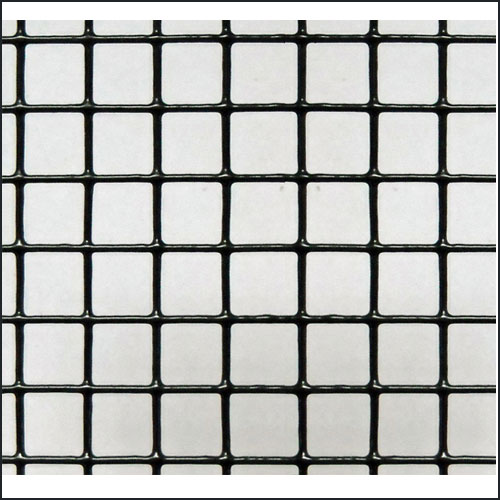

WELDED WIRE MESH,FABRICS,GRID,ANGULAR MESH

Metals - Mild Steel,Stainless Steel,Galvanised iron, etc.,

Mesh - Squre, Rectangular,Angular Meshes from 1/2" Hole to 6" Squares.

Width - upto 8"(2.5 mts)

Length - In Sheet / Running Rolls as per customer's requirement.

Thickness - 1/4" to 24 G(6 mm to 0.5 mm)

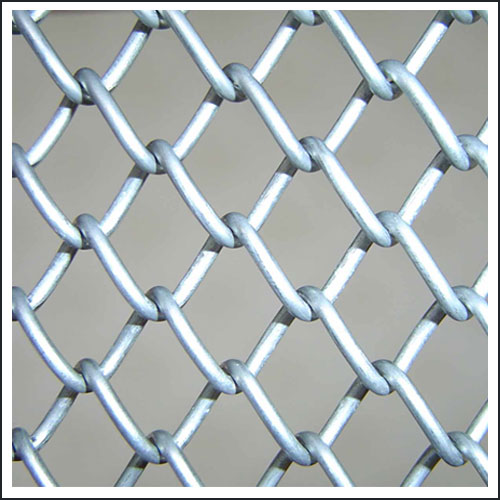

"TATA" G.I. CHAINLINK FENCING

Mesh - 6" to 1/8"
Wire Dia - 6 to 22 SWG
Material - G.I., M.S., Stainless Steel, P.V.C. Coated and Aluminium,Sprining Steel,etc.,

"TATA" G.I. BARBED WIRE

G.I Barbed Wire of 12G X 12G X 12G X 14G and 14G X 14G in 2" to 6" ply Barbs apart as per ISS Specification.

EXPANDED METAL

Mesh - 1/6" to 3" Mesh

Sheet - 1/4" to 30 SWG

Material - M.S., Stainless Steel,G.I.D., Aliminium, etc.,

TEST - SIEVES, LID & RECEIVER

These are manufactured as per B.S.S./ASTM/I.S.S Specification of standard dia (8") 200 mm with Brass, SS frames duly welded with Stainless Steel,Wire Mesh Mfrd from automatic Machine upto 600 mesh.

HEXAGONAL WIRE NETTING(CHICKEN MESH)

Mesh - 2" to 3/8" Mesh

Wire dia - 16 Gauge to 30 Gauge

Material - G.I., Stainless Steel, Brass, Nylon, etc.,
